FlashLink® Certified Vaccine PDF Data Logger with/Glycol Bottle, MCC
Model: 40528
FEATURES
- Monitor vaccines in ultra-low temperatures
- Ideal for storage and transport with dry ice
- Compatible with CDC and New 2021 WHO guidelines
- 21 CFR Part 11 compliant software
- Single channel, external sensor
- Automatically generates PDF, CSV and Daily Log reports
- Audible and/or visual alarms
- Low battery indicator on LCD
- Quick disconnect cable to download logger
- Scroll through daily stats on LCD screen
- History review of past data up to 128 days
- Records time when logger is disconnected from sensor
- Pause mode activated by button press or disconnected for downloading
- Fractional Time Zone setting
- Temperature Scale toggle C° or F°
The FlashLink® Certified Vaccine PDF Data Logger, Model 40528, is our newest device for monitoring stored vaccines and other temperature-sensitive liquid medications. It is also ideal for monitoring vaccines being transported with dry ice.

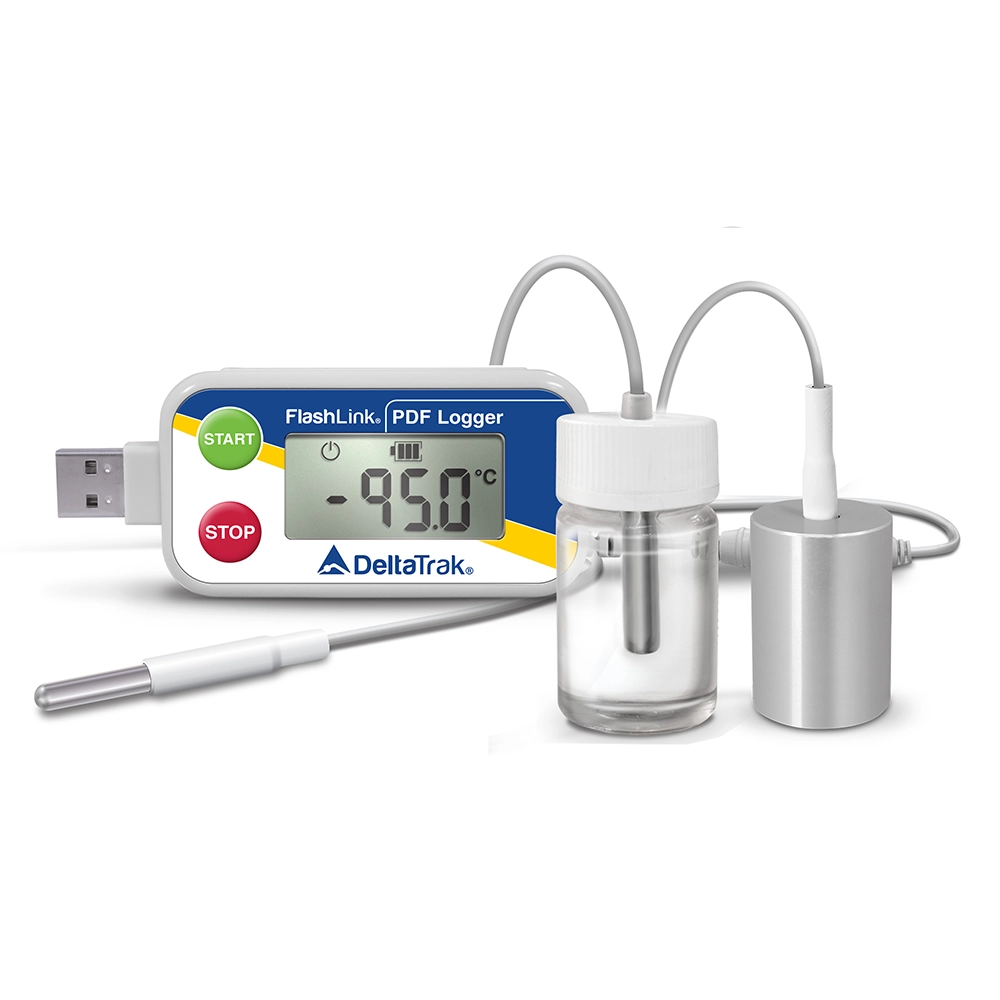

This reusable logger comes with three detachable sensors to accommodate a wide range of ultra-low temperature profiles – a glycol bottle, aluminum buffer and blunt probe. Glycol bottles emulate temperature changes occurring with most liquids during storage, improving the accuracy of readings. They are ideal for monitoring vaccines stored at temperatures between -40°C to 40°C.
For vaccines or pharmaceuticals requiring cryogenic storage, the aluminum buffer and blunt probe can withstand temperatures between -95°C and 95°C. Glycol and aluminum buffers provide dampening to prevent alarms due to temperature fluctuations associated with door openings and compressor cycling in refrigerators and freezers.
Several unique features make the certified vaccine PDF logger an excellent choice, including a large LCD display with low battery indicator, audible and visual alarms, three alarm pre-sets, and Celsius/Fahrenheit temperature scales. This PDF logger comes with a quick disconnect cable for easy downloading, and it automatically generates PDF, CSV, and daily log reports. The FlashLink Certified Vaccine PDF Data Logger meets FDA, CDC, and World Health Organization (WHO) guidelines for temperature monitoring devices.
| Feature | Specification |
|---|---|
| Temperature Resolution | 0.1°F/°C |
| Data Capacity | 32,000 data points |
| Data Download Time | 5 Seconds |
| Multiple Alarm Levels | High & low levels and extreme high and low levels displayed on LCD, with audible buzzer |
| Audible Alarm | 4kHz Sound Transducer |
| Battery | Single 3.6V lithium battery, LCD% remaining power indicator |
| Dimensions/Body | 1.575in x 3.67in x 0.94 (40mm x 93.5 x 24mm) |
| Casing | ABS Plastic |
| External Sensor | 0.14 Dia x 1.22in L (3.5mm Dia x 31mm L) 9.8 ft (3m) Teflon cable with stereo jack connector |
| Glycol Buffer | Propylene glycol (GRAS** classified) |
| Weight | 1.9 oz (54 grams) |
| Shock Resistance | Withstands 3-foot (1 meter) drop to hard surface |
| Weight | 1.9 oz (54 grams) |
| Calibration | Withstands 3-foot (1 meter) drop to hard surface |
| Certification | RTCA/DO-160G:2010 Sect 21.5, Calibration traceable to NIST, RoHS Compliant, BSS 7061 Compliant, CE Mark |
| Display | 17mm x 36mm LCD, Red LED Alarm, Green LED active |
| Waterproof Rating | IP56 when USB connector cap is installed |
| Storage conditions | -4°F to 122°(-20°C to 50°C) 0% to 95% RH w/o condensation |
| Shelf Life | 2 years (battery life) |
| System Requirements | Windows PC with current operating system, Adobe Reader |
| PDF Standars | Complies with ISO19005-1, PDF/A, 21 CFR Part 11 |
| Programming | Supplied preconfigured for plug and play. User programmable with FlashLink Program Manager software (included) or by configuration text file |
| Download Requirements | Direct USB connection to PC (No special software require to download logger) |
| Model | |
|---|---|
| 40528 | Includes Manufacturer’s Certificate of Compliance |
| 40528-01 | Includes 2-yr ISO 17025 Calibration Certificate |

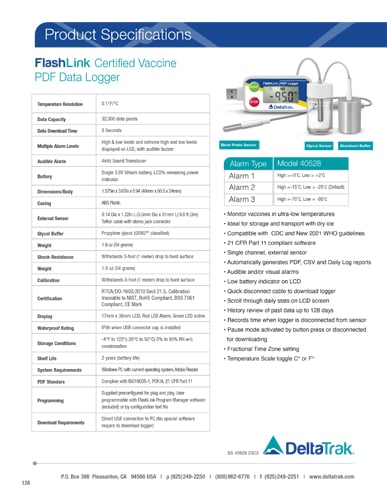

Download FlashLink Certified Vaccine ULT PDF Data Logger with External Aluminum Sensor Spec Sheet
Download Chinese FlashLink Certified Vaccine ULT PDF Data Logger with External Aluminum Sensor Spec Sheet
FlashLink Program Manager Software 7.1.9
FlashLink Program Manager is a user-friendly and feature-packed software for programming and downloading the FlashLink Mini Multi-Use and USB Reusable Data Loggers. It is available to be downloaded from the link below. A license number is necessary in order to complete the installation.
To download FlashLink Program Manager click on the link below to launch the download form. Refer to the help file in the software for data logger configuration programming.
