FlashLink® Now 4G/5G Real-Time In-Transit Logger
Model: 22393-01
MEASUREMENT RANGE
FEATURES
- Global cellular network real-time loggers
- Monitors location, temperature and light
- Proactively manage shipment conditions to reduce the risk of product loss due temperature excursions
- FlashTrak Cloud Service platform offers different levels of access to optimize user experience and API integration into customer systems. FlashTrak receiver program allows shippers to share access to alerts and shipment conditions
- USB option for downloading data and access to PDF reporting of trip details should communications not be available
- liAirline and Maritime options ensure access to all trip data can be accessed and reported completely when transmissions allow
APPLICATIONS
Real-time monitoring of local and export shipments, trip duration up to 60 days.
The FlashLink® NOW 4G/5G Real-Time In-Transit Logger utilizes the latest technology to protect domestic and export shipments of temperature sensitive products. DeltaTrak’s real-time devices provide the data shippers and receivers need to take immediate action if a temperature excursion occurs. With a single device, users can capture multiple types of sensor data, including location, temperature, humidity, light and shock.
FlashLink NOW incorporates several enhanced features which offer new options for accessing data and contribute to greater ease of use. The addition of an LCD screen enables users to view trip data stored in the unit’s memory. An extended trip duration of up to 90 days ensures that exported shipments will remain protected during overseas transport. Wider temperature measurement range of -30°C to 70°C (-22°F to 158°F) allows monitoring of commodities with diverse requirements.

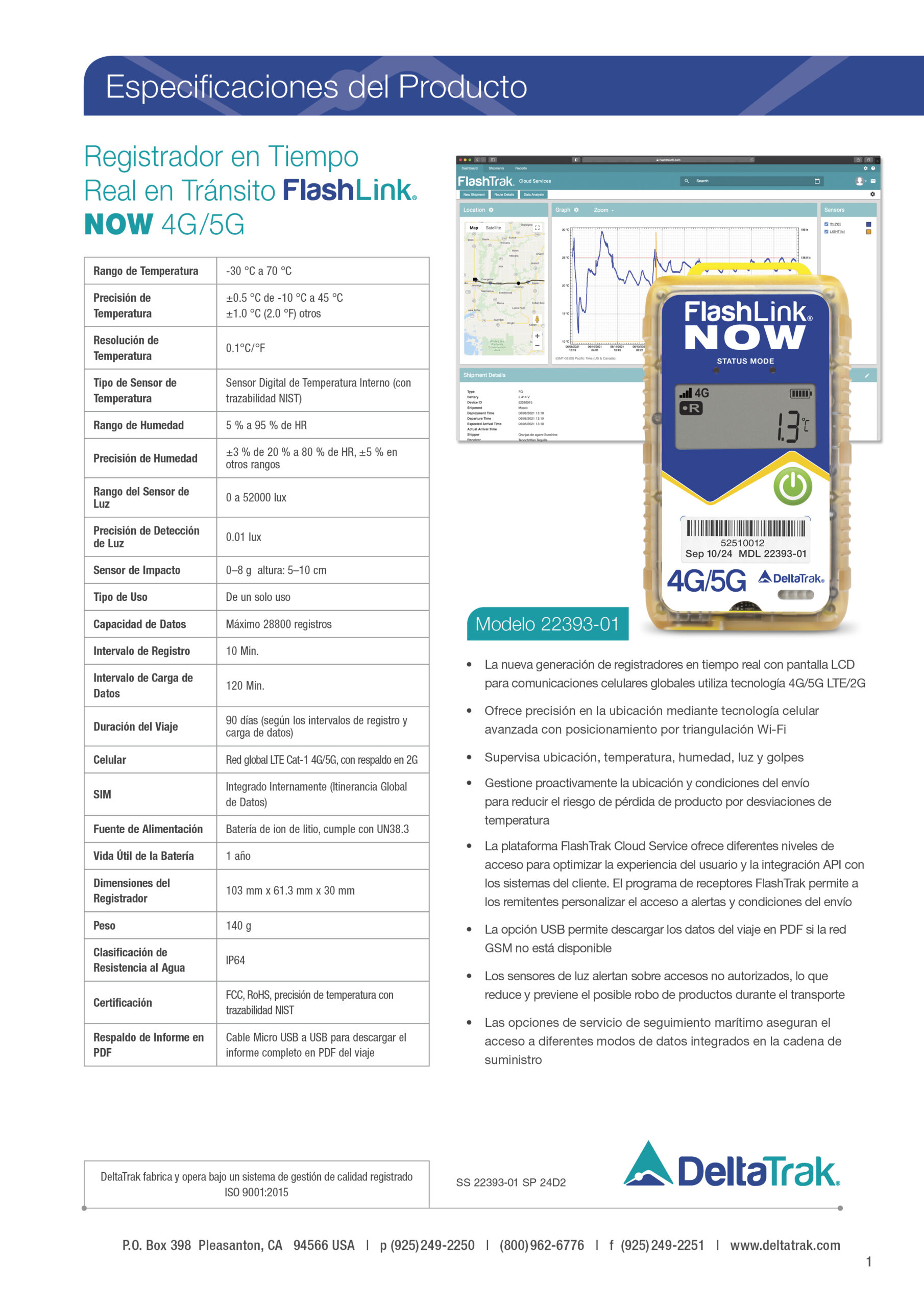

| FEATURE | SPECIFICATIONS |
|---|---|
| Temperature Range | -30°C to 70°C (-22°F to 158°F) |
| Temperature Accuracy | ±0.5°C from -10°C to 45°C (±0.9°F from 14°F to 113°F), ±1.0°C (2.0°F) Other |
| Temperature Resolution | 0.1°C/°F |
| Temperature Sensor Type | Internal Digital Temperature Sensor (NIST traceable) |
| Light Sensor Range | 0 to 52000 lux |
| Light Detection Accuracy | 0.01 lux |
| Usage Type | Single-use |
| Data Capacity | Max 28800 Readings |
| Logging Interval | 10 Min. |
| Data Upload Interval | 90 Min. |
| Trip Duration | 60-Day (based on logging and uploading intervals) |
| Cellular | Global Quad-band GSM(850, 900, 1800, 1900MHz), GPRS data |
| SIM | Internal Embedded (Global Data Roaming) |
| Battery Shelf Life | 1 year |
| Logger Dimensions | 4.05in x 2.41in x 1.18in (103mm x 61.3mm x 30mm) |
| Weight | 4.16 oz (118 grams) |
| Waterproof Rating | IP64 |
| Certification | FCC, RoHS, NIST traceable temperature accuracy |
| PDF Report Backup | Micro USB to USB cable to download full trip PDF report |
Each FlashLink® RTL Prime 2G In-Transit Logger is mounted on a bright green shipping card, making it easy to find when a load arrives. The card has an area for documenting shipping information and features a peel-away barcode label that can be attached to the bill of lading or other shipping documents, for traceability. It also provides shipper and receiver simple 2-steps instructions in English and Spanish.
FlashTrak
FlashTrak is a leading real-time cloud service for Supply Chain visibility, built on modern technology that transforms your supply chain management. Access data anywhere in the world with our dedicated FlashTrak Web Portal to download, print or share actionable data in real time.
FlashTrak Connect Mobile App
FlashTrak Connect is a supply chain application offering more options for viewing shipment data. Shippers and receivers use the app to conveniently access information for shipments monitored by DeltaTrak data loggers.
