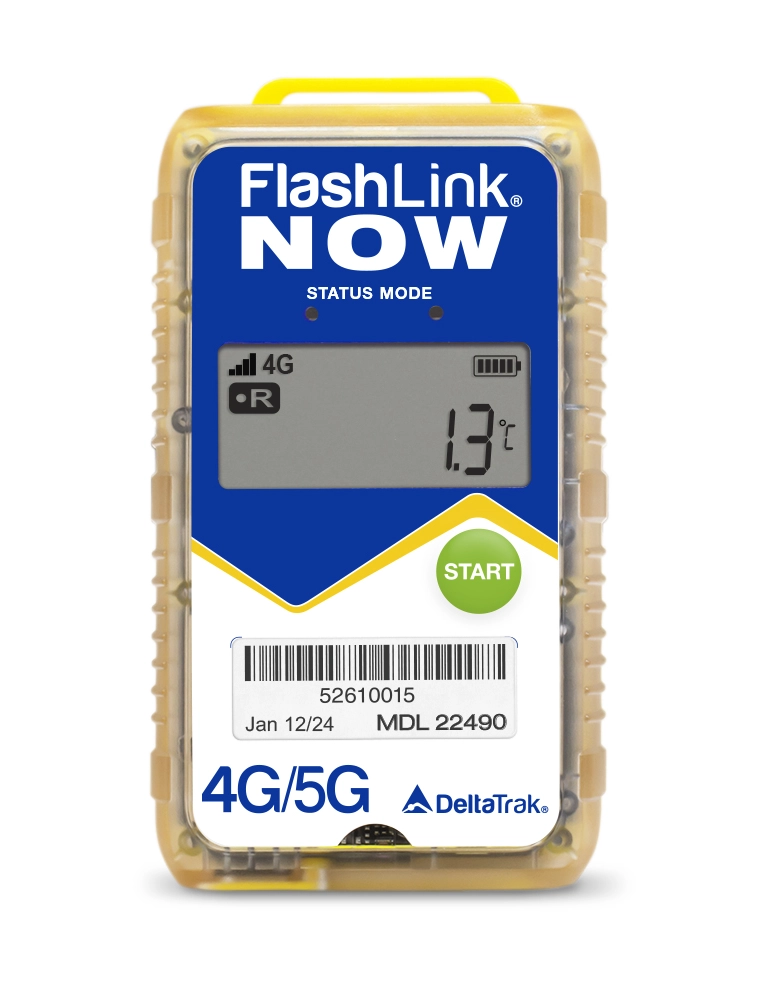

FlashLink® NOW 4G/5G Real-Time In-Transit Logger
Model: 22490
MEASUREMENT RANGE
FEATURES
-
- Non-Lithium Battery
- Next generation of global cellular communications real-time loggers with LCD using 4G/5G LTE with 2G backup
- Monitors location, temperature, and light
- Proactively manage shipment location and conditions toreduce the risk of product loss due temperature excursions
- FlashTrak Cloud Service platform offers different levels of access to optimize user experience and API integration into customer systems. FlashTrak receiver program allows shippers to customize access to alerts and shipment conditions
- USB option to download PDF trip data should GSM network not be available
- Light sensors alert you to unplanned security accesswhich reduces and averts potential product theft during transportation
- Maritime tracking service options ensure access to different modes of integrated supply chain data
APPLICATIONS
Real-time monitoring of export shipments, trip duration up to 15 days
The FlashLink NOW 4G/5G Real-Time In-Transit Logger utilizes the latest technology to protect domestic and export shipments of temperature sensitive products. DeltaTrak’s real-time devices provide the data shippers and receivers need to take immediate action if a temperature excursion occurs. With a single device, users can capture multiple types of sensor data, including location, temperature, and light FlashLink NOW incorporates several enhanced features which offer new options for accessing data and contribute to greater ease of use. The addition of an LCD screen enables users to view trip data stored in the unit’s memory. A wider temperature measurement range of -30°C to 70°C (-22°F to 158°F) allows monitoring of commodities with diverse requirements.
| FEATURE | SPECIFICATIONS |
|---|---|
| Temperature Range | -30°C to 70°C (-22°F to 158°F) |
| Temperature Accuracy | ±0.9°F from 68°F to 104°F (±0.5°C from 20°C to 40°C), 2.0°F (±1.0°C) Other |
| Temperature Resolution | 0.1°C/°F |
| Temperature Sensor Type | Internal Digital Temperature Sensor (NIST traceable) |
| Light Sensor Range | 0 to 52000 lux |
| Light Detection Accuracy | 0.01 lux |
| Usage Type | Single-use |
| Data Capacity | Max 28800 Readings |
| Logging Interval | 5 Min. |
| Data Upload Interval | 15 Min. |
| Trip Duration | 15-Day (based on logging and uploading intervals) |
| Cellular | Global LTE Cat-1 4G/5G network, with 2G Fallback |
| SIM | Internal Embedded (Global Data Roaming) |
| Power Source | Non-Lithium, NiMH, meets UN38.3 |
| Battery Shelf Life | 6 months |
| Logger Dimensions | 4.05in x 2.41in x 1.18in (103mm x 61.3mm x 30mm) |
| Weight | 6.3 oz (178g) |
| Waterproof Rating | IP64 |
| Certification | FCC, RoHS, NIST traceable temperature accuracy, RTCA/DO-160G |
| PDF Report Backup | Micro USB to USB cable to download full trip PDF report |
Each FlashLink® NOW 4G/5G Real-Time In-Transit Logger is mounted on a bright green shipping card, making it easy to find when a load arrives. The card has an area for documenting shipping information and features a peel-away barcode label that can be attached to the bill of lading or other shipping documents, for traceability. It also provides shipper and receiver simple 2-steps instructions in English and Spanish.
Users can scan the QR code to quickly access more product information online.

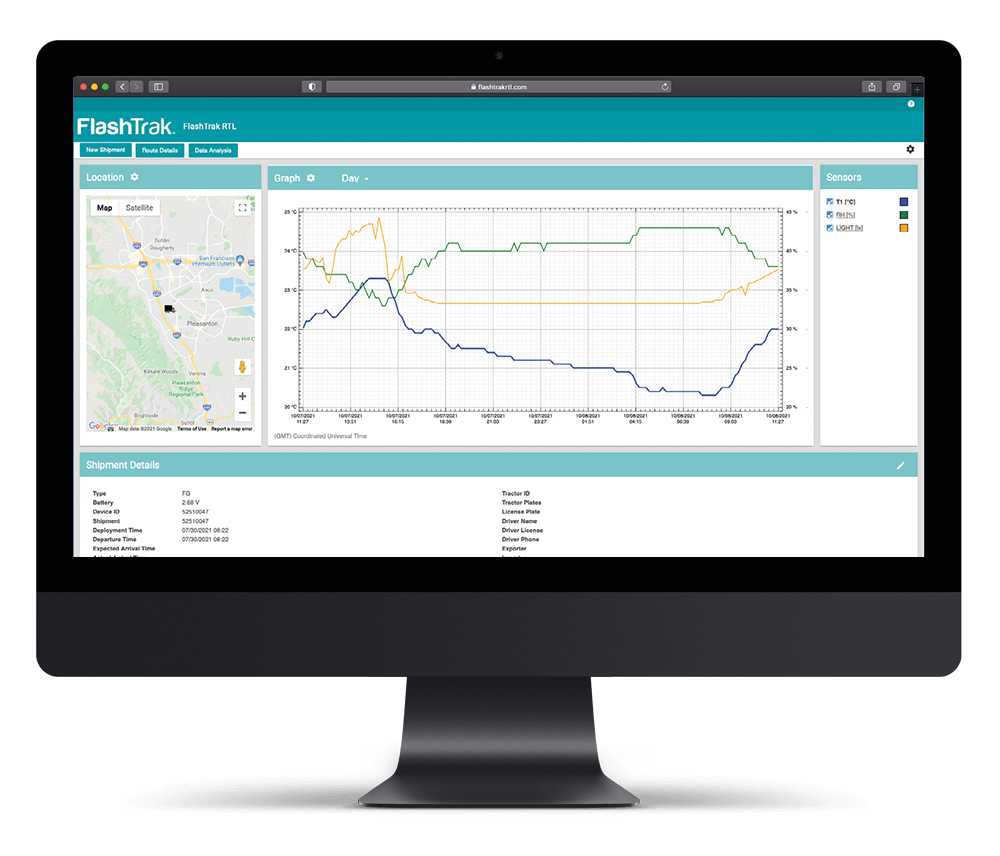

FlashTrak
FlashTrak is a leading real-time cloud service for Supply Chain visibility, built on modern technology that transforms your supply chain management. Access data anywhere in the world with our dedicated FlashTrak Web Portal to download, print or share actionable data in real time.

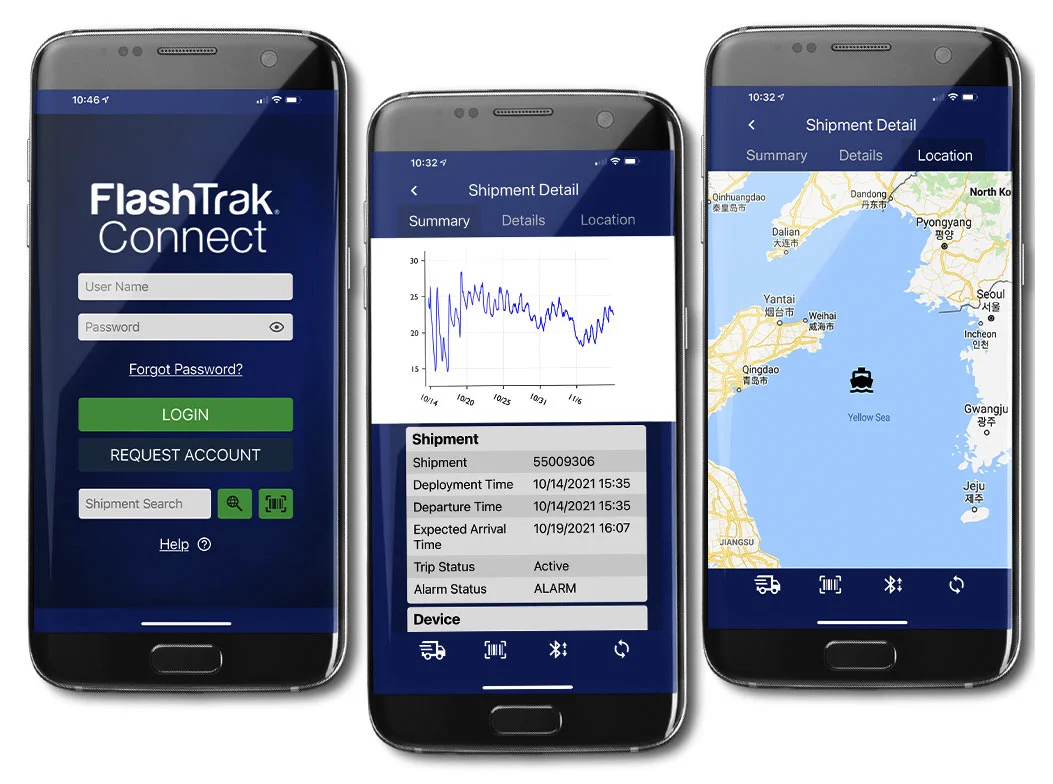

FlashTrak Connect Mobile App
FlashTrak Connect is a supply chain application offering more options for viewing shipment data. Shippers and receivers use the app to conveniently access information for shipments monitored by DeltaTrak data loggers.
Download FlashLink PDF Elite In-Transit Logger Spec Sheet
Download Spanish FlashLink PDF Elite In-Transit Logger Spec
