Temperature/Humidity/Dew Point Circular Chart Recorder
Model: 14013
FEATURES
- Model 14013 – 110V Recorder, Model 14014 – 220V Recorder
- Easy-to-read LCD display shows temperature and humidity
- Full function alarm
- 48-hour battery backup in case of power failure
APPLICATIONS
Refrigerated Storage Facilities, Greenhouses, Live Animal Production Facilities, Processing Rooms, Labs.
The Temperature/Humidity/Dew Point Circular Chart Recorder uses a red pen to track temperature and a blue pen to track humidity, permanently recording these measurements on a 6-inch (165mm) diameter paper chart. Power is supplied to the temperature recorder through a 110V AC 50/60 Hz plug-in adapter for Model 14013 and a 220V AC adapter for Model 14014. External power may be supplied from any 12V DC source such as automotive, marine or other battery.
Battery backup for 48 hours provides power and assures operation of the temperature chart recorder during temporary power loss.
DeltaTrak’s Temperature/Humidity/Dew Point Circular Chart Recorder, Model 14013 (110V) and Model 14014 (220V), provides simultaneous monitoring of both temperature and relative humidity. This chart recorder is available in four different chart speeds: 12 hours, 24 hours, 7 days and 31 days. Charts are available in either °F or °C scale. The temperature chart recorder’s recording range is -20°F ~ 120°F (-30°C ~ 50°C) and 10%-90% RH. The circular chart recorder will also calculate dew point. There is an easy-to-read LCD display and a full function audible alarm for temperature excursions.
*Includes power supply, 1 box of 60 charts and pens (1 red and 1 blue)

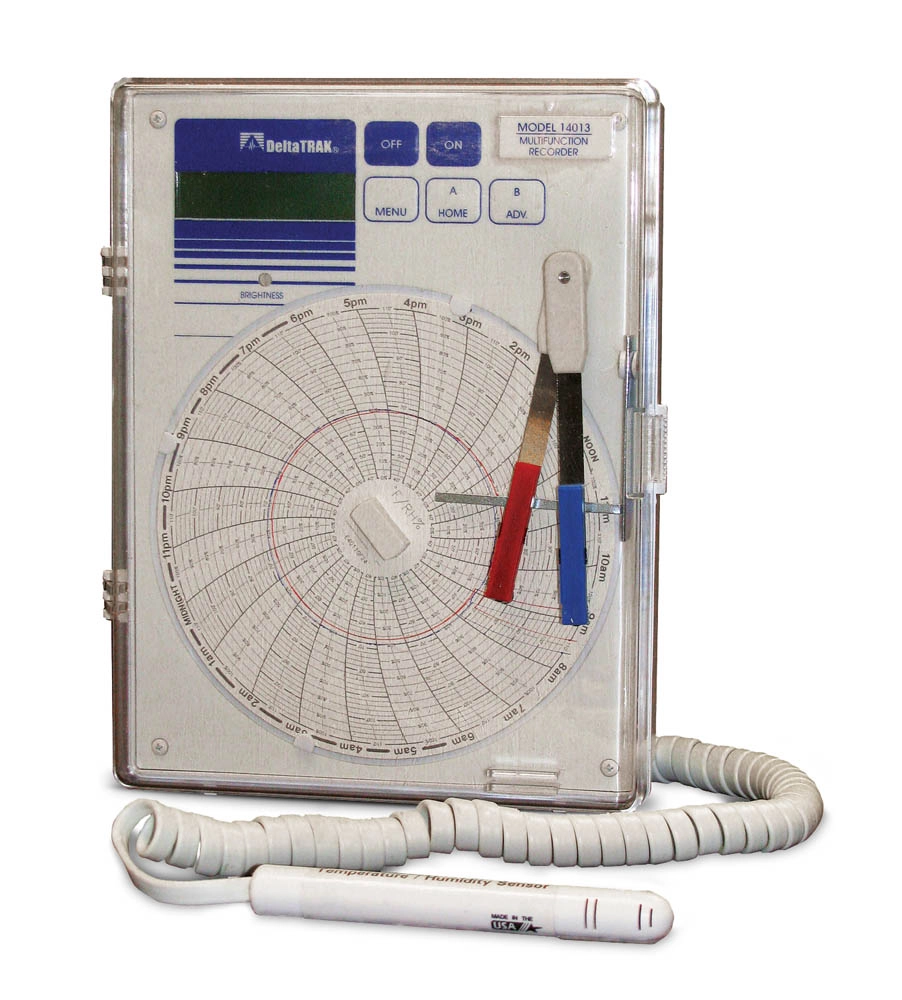

Model 14013-14014 Chart Recorder with Temperature/Humidity/Dew point sensor

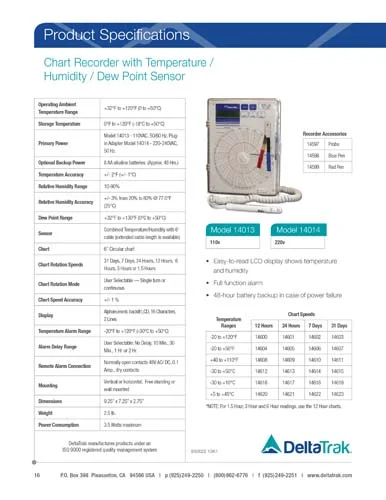

| FEATURE | SPECIFICATION |
|---|---|
| Operating Ambient Temperature Range | +32°F to +120°F (0 to +50°C) |
| Storage Temperature | 0°F to +120°F (-18°C to +50°C) |
| Primary Power | Model 14013 – 110VAC, 50/60 Hz. Plug-in Adapter Model 14014 – 220-240VAC, 50 Hz. |
| Optional Backup Power | 8 AA alkaline batteries (Approx. 48 Hrs.) |
| Temperature Accuracy | +/- 2°F (+/- 1°C) |
| Relative Humidity Range | 10-90% |
| Relative Humidity Accuracy | +/- 3% from 20% to 80% @ 77.0°F (25°C) |
| Dew Point Range | +32°F to +130°F (0°C to +50°C) |
| Sensor | Combined Temperature/Humidity with 6’ cable (extended cable length is available) |
| Chart | 6” Circular chart |
| Chart Rotation Speeds | 31 Days, 7 Days, 24 Hours, 12 Hours, 6 Hours, 3 Hours or 1.5 Hours |
| Chart Rotation Mode | User Selectable — Single turn or continuous |
| Chart Speed Accuracy | +/- 1 % |
| Display | Alphanumeric backlit LCD, 16 Characters, 2 Lines |
| Temperature Alarm Range | -20°F to +120°F (-30°C to +50°C) |
| Alarm Delay Range | User Selectable: No Delay, 10 Min., 30 Min., 1 Hr. or 2 Hr. |
| Remote Alarm Connection | Normally open contacts 48V AC/ DC, 0.1 Amp., dry contacts |
| Mounting | Vertical or horizontal; Free standing or wall mounted |
| Dimensions | 9.25” x 7.25” x 2.75” |
| Weight | 2.5 lb. |
| Power Consumption | 3.5 Watts maximum |
Replacement Charts (60 per package)
| Part Number | °F / °C | Recording Time |
| 14600 | -20 to 120°F | 12 Hrs. |
| 14601 | -20 to 120°F | 24 Hrs. |
| 14602 | -20 to 120°F | 7 Day |
| 14603 | -20 to 120°F | 31 Day |
| 14604 | -20 to 50°F | 12 Hrs. |
| 14605 | -20 to 50°F | 24 Hrs. |
| 14606 | -20 to 50°F | 7 Day |
| 14607 | -20 to 50°F | 31 Day |
| 14608 | 40 to 110°F | 12 Hrs. |
| 14609 | 40 to 110°F | 24 Hrs. |
| 14610 | 40 to 110°F | 7 Day |
| 14611 | 40 to 110°F | 31 Day |
| 14612 | -30 to 50°C | 12 Hrs. |
| 14613 | -30 to 50°C | 24 Hrs. |
| 14614 | -30 to 50°C | 7 Day |
| 14615 | -30 to 50°C | 31 Day |
| 14616 | -30 to 10°C | 12 Hrs. |
| 14617 | -30 to 10°C | 24 Hrs. |
| 14618 | -30 to 10°C | 7 Day |
| 14619 | -30 to 10°C | 31 Day |
| 14620 | 5 to 45°C | 12 Hrs. |
| 14621 | 5 to 45°C | 24 Hrs. |
| 14622 | 5 to 45°C | 7 Day |
| 14623 | 5 to 45°C | 31 Day |
NOTE: for 1.5 Hour, 3 Hour and 5 Hour readings, use the 12 Hour charts
Temperature/Humidity Circular Chart Recorder Accessories
| Part Number | Description |
| 14597 | Replacement Blue Pen (Humidity) |
| 14598 | Replacement Probe with 15 ft. cable, plug-in connection |
| 14599 | Replacement Red Pen (Temperature) |
