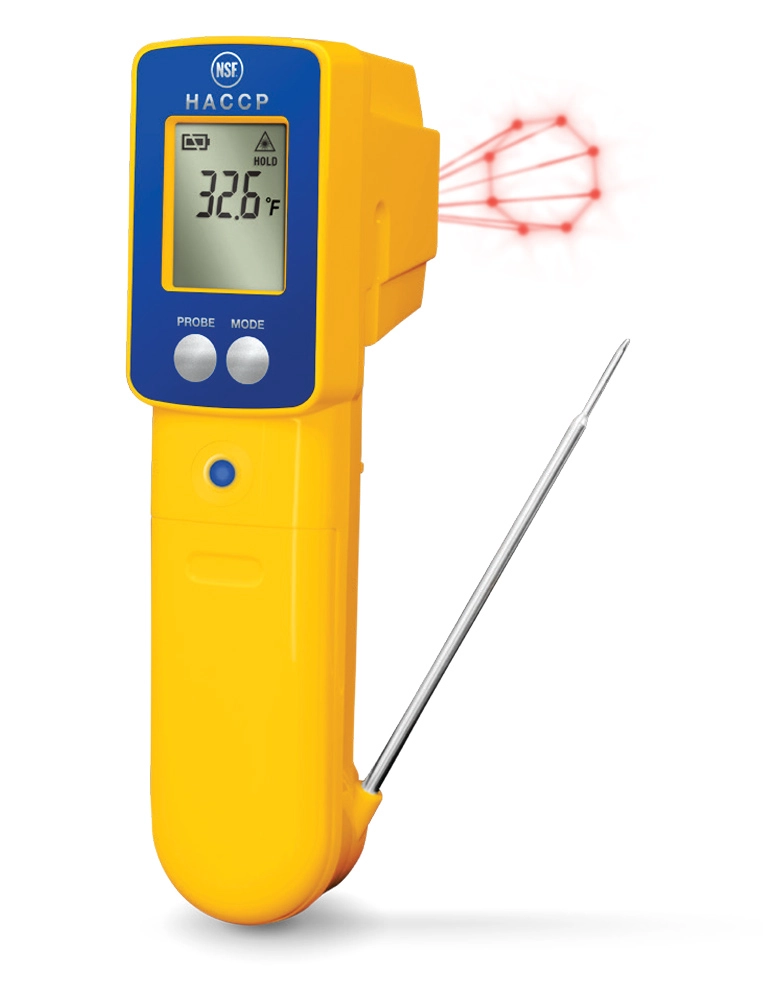

ThermoTrace® BLE Infrared Thermocouple Probe Combo Thermometer
Model: 15039-01
FEATURES
- Lightweight, compact, 2-in-1 design
- Thermocouple probe for internal product temperature
- Infrared for instant non-contact surface measurement
- Multi-beam laser for accurate targeting
- Ideal for extremely hot areas, moving objects, hard to reach places
- Verify HACCP check points
- Min/Max memory in IR mode
- NSF Certified, NIST traceable calibration
- Fast 3 second thermocouple reading
- Instant infrared reading
- Low battery indicator
APPLICATIONS
Ideal for extremely hot areas, moving objects, hard to reach places
This fast, accurate thermometer is ideal for use anywhere food is processed, prepared, handled, served, packed, stored, shipped and received. The sharp tip thermocouple probe measures internal temperature, while the infrared sensor allows users to take instant surface temperature without touching, contaminating or causing damage. It is also ideal for measuring extremely hot areas, moving objects and hard to reach places. The unique multi-beam laser sighting ensures accurate aim at the target and provides an easy way to verify HACCP check points.
*All models packaged 1 unit per box unless stated otherwise
ThermoTrace BLE Infrared Thermocouple Probe Combo Thermometer
| Feature | Specification |
|---|---|
| Field of View | 8:1 |
| Infrared Measurement Range | -76°F to 662°F (-60°C to 350°C) |
| Probe Measurement Range | -76°F to 662°F (-60°C to 350°C) |
| Operating Range | 32°F to 122°F (0°C to 50°C) |
| Infrared Accuracy | Object Temperature: ±1.1°F from 59°F to 95°F (±0.6·°C from 15°C to 35°C) Ambient Temperature: 68°F to 78.8°F (20°C to 26ºC) -76°F to 0°F: ±(2°F+0.1/degree) (-60°C to 0°C: ±(1°C+0.1/degree) 0°F to 149°F: ±2°F (0°C to 65°C: ±1°C) 149°F to 662°F: ±1.5% of reading (65°C to 350°C: ±1.5% of reading) |
| Probe Accuracy | < 23°F: ±2°F (<-5°C: ±1°C) 23°F to 149°F: ±1°F (-5°C to 65°C: ±0.5°C) >149°F (>65°C): ±1% of reading |
| Response Time | Less than 1 second |
| Display Hold Time | 30 seconds |
| Display Resolution | 0.5°F (0.2°C) |
| Emissivity Range | Factory set at 0.95 – adjustable 0.1 to 1.00 step 0.01 |
| Battery & Battery Life | AAA x 2 IRT Mode: Typical 22 hrs; min. 20 hrs continuous use (with laser) COT Mode: Typical 207 hrs; min. 200 hrs continuous use |
| Sighting Method | Multi-beam laser |
| Dimensions | 1.56in x 2.12in x 6.22in (39.5mm x 53.9mm x 158mm) |
| Weight | 5.64oz (160g) including batteries |
| Probe | Stainless steel, Length 3.74in (95mm), Dia 0.067in (1.7mm) |
| IP Rating | IP54 |
| Certification | CE, NSF, NIST traceable |
Bluetooth General Specifications
| DeltaTrak manufactures products under an ISO 9001:2015 registered quality management system | |
| Chipset | Nordic nRF51822 |
| Power Rating | DC 1.8V to 3.6V |
| Operating Temp | -22°F to 185°F (-30°C to 85°C) |
| Storage Temp | -40°F to 185°F (-40°C to 85°C) |
| Humidity (Non-Operating) | 95% Maximum |
| Frequency and Power | 2402-2480 MHz; 40 ch; 3.0mW |
DeltaTrak manufactures products under an ISO 9001:2015 registered quality management system
